AC200-600kg
Introduction

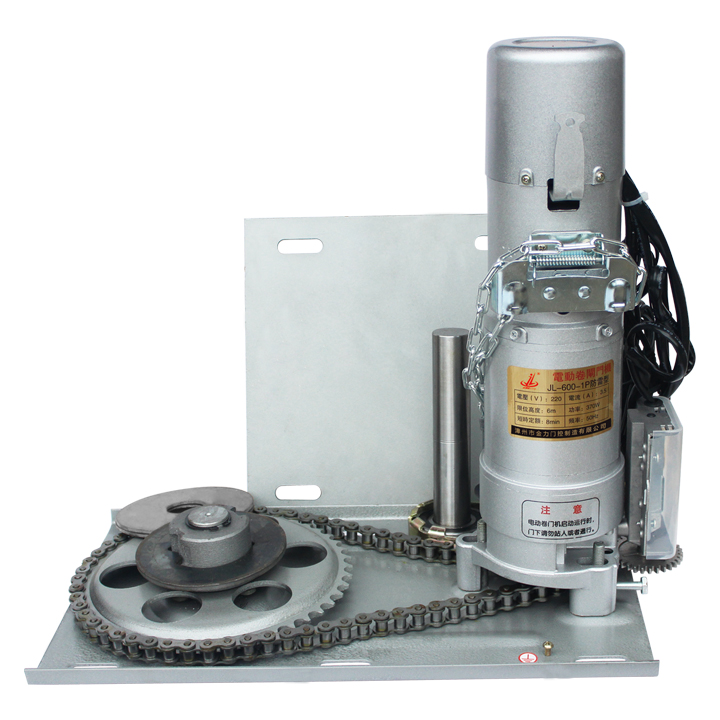

AC 300KG – Roller Shutter Motor
Application:
AC 300KG roller shutter motor is ideal for commercial roller doors, offering high reliability, smooth operation, and safety features for modern shutter installations.
Technical Specifications:
Model | AC 300KG |
Motor Type | AC |
Rated Power (W/A) | 268W / 1.3A |
Output Speed (RPM) | 4.5 |
Max Lifting Height (m) | 6 |
Chain Type | 10A |
Suitable Door Size (m²) | 3×5 |
Reduction Gear Box Type | 3 |
Rated Voltage | 220V |
Rated Frequency | 50Hz / 60Hz |
Material | Copper Wire |
Limit Switch Type | Mechanical (2 default, customizable to 4) |
Remote Control | 433MHz (Learning / Fixed / Dial Code) |
Noise Level | ≤ 55 dB |
Protection Level | IP44 |
Temperature Range | -20°C ~ +50°C |
Certifications | CE, INMETRO, ISO 9001 |
OEM Support | Yes |
Warranty Period | 1 Year |
Made In | China |
Manufacturer | Zhangzhou Jinli Gate Control Manufacturing Co., Ltd. |
Backup System | Manual Chain |
Safety Features | Overheat, Overload, Chain Breakage Protection |
Installation Ring | Octagonal / Triangular |
UPS Compatibility | Yes (DC Series Only) |
MOQ | 1 Set |
Lead Time | 3–7 Days (Sample), 20–45 Days (Bulk) |
HS Code | 85014000 |
AC 400KG – Roller Shutter Motor
Application:
AC 400KG roller shutter motor is ideal for commercial roller doors, offering high reliability, smooth operation, and safety features for modern shutter installations.
Technical Specifications:
Model | AC 400KG |
Motor Type | AC |
Rated Power (W/A) | 270W / 1.3A |
Output Speed (RPM) | 4.5 |
Max Lifting Height (m) | 6 |
Chain Type | 10A |
Suitable Door Size (m²) | 4×6 |
Reduction Gear Box Type | 3 |
Rated Voltage | 220V |
Rated Frequency | 50Hz / 60Hz |
Material | Copper Wire |
Limit Switch Type | Mechanical (2 default, customizable to 4) |
Remote Control | 433MHz (Learning / Fixed / Dial Code) |
Noise Level | ≤ 55 dB |
Protection Level | IP44 |
Temperature Range | -20°C ~ +50°C |
Certifications | CE, INMETRO, ISO 9001 |
OEM Support | Yes |
Warranty Period | 1 Year |
Made In | China |
Manufacturer | Zhangzhou Jinli Gate Control Manufacturing Co., Ltd. |
Backup System | Manual Chain |
Safety Features | Overheat, Overload, Chain Breakage Protection |
Installation Ring | Octagonal / Triangular |
UPS Compatibility | Yes (DC Series Only) |
MOQ | 1 Set |
Lead Time | 3–7 Days (Sample), 20–45 Days (Bulk) |
HS Code | 85014000 |
AC 500KG – Roller Shutter Motor
Application:
AC 500KG roller shutter motor is ideal for commercial roller doors, offering high reliability, smooth operation, and safety features for modern shutter installations.
Technical Specifications:
Model | AC 500KG |
Motor Type | AC |
Rated Power (W/A) | 340W / 1.6A |
Output Speed (RPM) | 4.5 |
Max Lifting Height (m) | 6 |
Chain Type | 10A |
Suitable Door Size (m²) | 5×6 |
Reduction Gear Box Type | 3 |
Rated Voltage | 220V |
Rated Frequency | 50Hz / 60Hz |
Material | Copper Wire |
Limit Switch Type | Mechanical (2 default, customizable to 4) |
Remote Control | 433MHz (Learning / Fixed / Dial Code) |
Noise Level | ≤ 55 dB |
Protection Level | IP44 |
Temperature Range | -20°C ~ +50°C |
Certifications | CE, INMETRO, ISO 9001 |
OEM Support | Yes |
Warranty Period | 1 Year |
Made In | China |
Manufacturer | Zhangzhou Jinli Gate Control Manufacturing Co., Ltd. |
Backup System | Manual Chain |
Safety Features | Overheat, Overload, Chain Breakage Protection |
Installation Ring | Octagonal / Triangular |
UPS Compatibility | Yes (DC Series Only) |
MOQ | 1 Set |
Lead Time | 3–7 Days (Sample), 20–45 Days (Bulk) |
HS Code | 85014000 |
AC 600KG – Roller Shutter Motor
Application:
AC 600KG roller shutter motor is ideal for commercial roller doors, offering high reliability, smooth operation, and safety features for modern shutter installations.
Technical Specifications:
Model | AC 600KG |
Motor Type | AC |
Rated Power (W/A) | 370W / 1.9A |
Output Speed (RPM) | 4.5 |
Max Lifting Height (m) | 6 |
Chain Type | 10A |
Suitable Door Size (m²) | 5×6 |
Reduction Gear Box Type | 3 |
Rated Voltage | 220V |
Rated Frequency | 50Hz / 60Hz |
Material | Copper Wire |
Limit Switch Type | Mechanical (2 default, customizable to 4) |
Remote Control | 433MHz (Learning / Fixed / Dial Code) |
Noise Level | ≤ 55 dB |
Protection Level | IP44 |
Temperature Range | -20°C ~ +50°C |
Certifications | CE, INMETRO, ISO 9001 |
OEM Support | Yes |
Warranty Period | 1 Year |
Made In | China |
Manufacturer | Zhangzhou Jinli Gate Control Manufacturing Co., Ltd. |
Backup System | Manual Chain |
Safety Features | Overheat, Overload, Chain Breakage Protection |
Installation Ring | Octagonal / Triangular |
UPS Compatibility | Yes (DC Series Only) |
MOQ | 1 Set |
Lead Time | 3–7 Days (Sample), 20–45 Days (Bulk) |
HS Code | 85014000 |
