AC1300-1500KG

Introduction

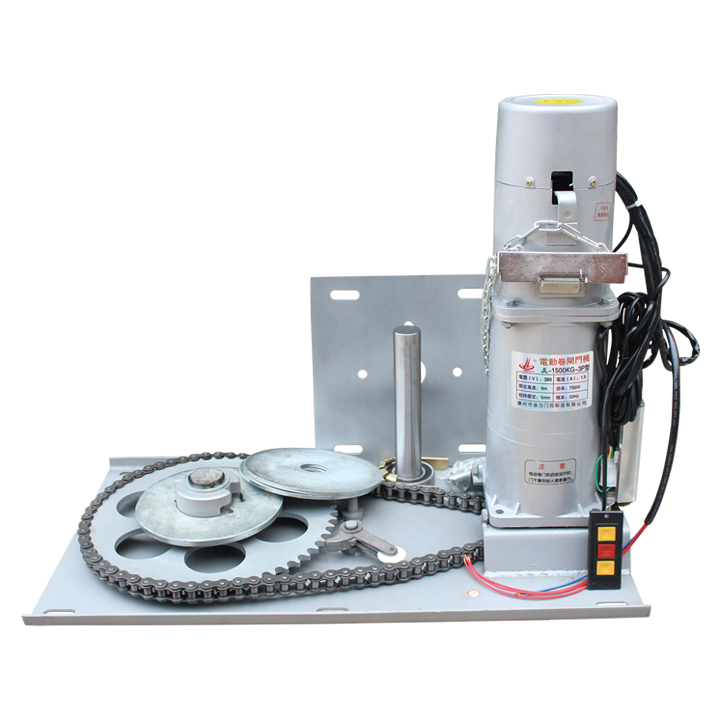

AC 1500KG – Roller Shutter Motor

Application:

AC 1500KG roller shutter motor is ideal for commercial roller doors, offering high reliability, smooth operation, and safety features for modern shutter installations.

Technical Specifications:

Model	AC 1500KG
Motor Type	AC
Rated Power (W/A)	480W / 2.5A
Output Speed (RPM)	4.0
Max Lifting Height (m)	9
Chain Type	12A
Suitable Door Size (m²)	10×6
Reduction Gear Box Type	3
Rated Voltage	220V
Rated Frequency	50Hz / 60Hz
Material	Copper Wire
Limit Switch Type	Mechanical (2 default, customizable to 4)
Remote Control	433MHz (Learning / Fixed / Dial Code)
Noise Level	≤ 55 dB
Protection Level	IP44
Temperature Range	-20°C ~ +50°C
Certifications	CE, INMETRO, ISO 9001
OEM Support	Yes
Warranty Period	1 Year
Made In	China
Manufacturer	Zhangzhou Jinli Gate Control Manufacturing Co., Ltd.
Backup System	Manual Chain
Safety Features	Overheat, Overload, Chain Breakage Protection
Installation Ring	Octagonal / Triangular
UPS Compatibility	Yes (DC Series Only)
MOQ	1 Set
Lead Time	3–7 Days (Sample), 20–45 Days (Bulk)
HS Code	85014000
